SeaZeroQuest

An Experiement in Three JS and documenting my learning of Javascript and WebGL.

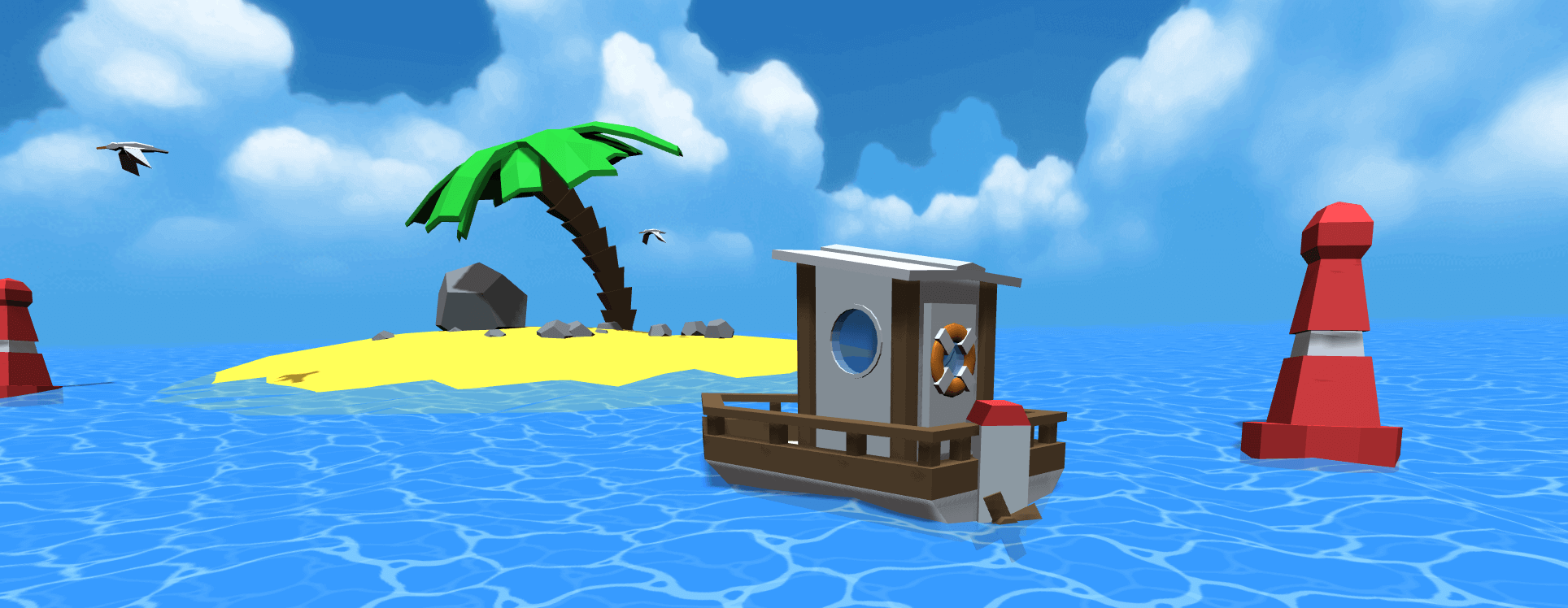

Level-1 - Scene creation

The first stage was to take my exisiting Three.js knowledge and implement a complex scene.

Elements include:

• Boat model
• Sea shader and animation “fake shader” using planes
• Beacon model
• Island model
• Sea Gull model and animation
• User Controls with no persistence

Controls - Mouse/Touch to rotate the camera. WASD to move the boat.

Level 1 can be played here

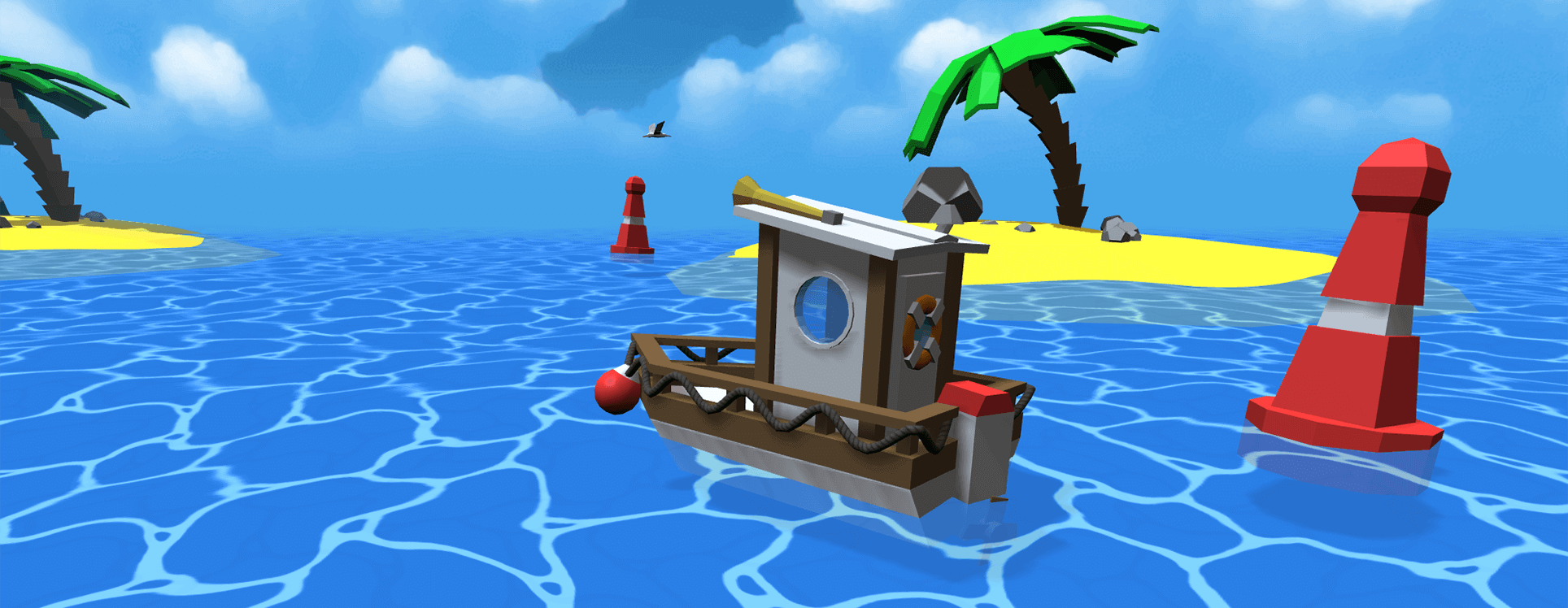

Level-2 - Optimise all the things

The next step is a refactoring of my existing code and functions to reduce drawCalls.

Previous: 450+ draws, 2600 calls

Current: 92 draws, 900 calls

Optimisation includes:

• GLSL WebGL Shader used for water - reducing 700+ calls
• Merging Island Geometry and objects - reducing 50 drawCalls and 200 calls
• Merging Beacon Geometry - reducing 5 drawCalls and 35 calls
• Merging Boat Geometry - reducing 100 drawCalls - further opti for calls req.
• SeaGulls - Due to the nature of animating all the elements, merging isn’t possible. ReUsed geometry and animation for all with offsets for variation. - further opti for calls req.

Controls - Mouse/Touch to rotate the camera. WASD to move the boat.

Level 2 can be played here

Level-3 - Physics with Cannon.js

To add collision detection and make the controls feel better, I decided to add a physics engine to the scene.

Cannon.js is a physics engine written in and for Javascript and runs well with Three.js. It requires running a seperate physics “world” along side the three.js world.

Controls - Mouse/Touch to rotate the camera. WASD to move the boat.

Level 3 can be played here
